Introduction to Quartz Fiber Sleeves
In today’s demanding industrial landscape, where materials are exposed to extreme temperatures, corrosive chemicals, and volatile mechanical conditions, traditional insulation just doesn’t cut it anymore. Quartz fiber sleeves have emerged as a superior solution, offering unmatched performance, durability, and protection. Whether in aerospace, military, or high-heat industrial environments, their capabilities far exceed conventional alternatives.
But what exactly is a quartz fiber sleeve, and why is it the go-to solution in mission-critical systems?

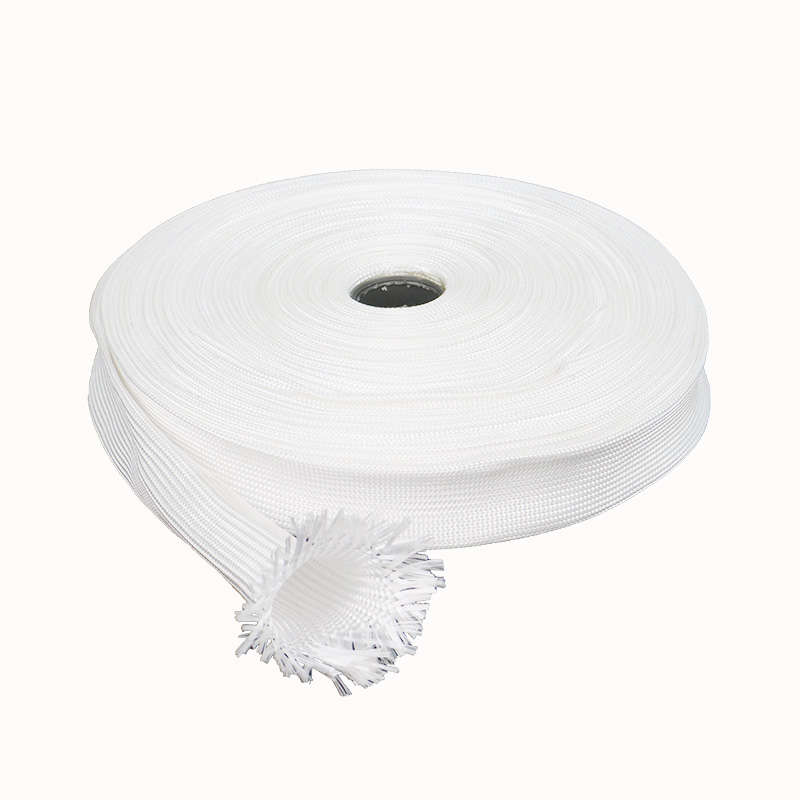

A quartz fiber sleeve is a tubular insulating material made from ultra-pure silica glass filaments—over 99.9% purity—crafted through woven or braided processes. These fibers, often between 1 and 15 microns in diameter, create an incredibly flexible yet durable thermal barrier. Available in multiple diameters and thicknesses, these sleeves are fully customizable for diverse applications where extreme conditions demand uncompromising performance.
Why Quartz Fiber Sleeves Are Scientifically Superior
The performance of quartz fiber sleeves stems from their intrinsic material properties and the way they are manufactured. Their ability to thrive in hostile environments makes them indispensable in high-stakes fields.
Extreme Temperature Resistance
The most celebrated feature of the quartz fiber sleeve is its temperature resilience. Capable of continuous operation at 1050°C (1922°F) and withstanding instantaneous spikes up to 1700°C (3092°F), it easily surpasses the thermal tolerance of common materials like fiberglass or silicone. This stability ensures uninterrupted protection and insulation in applications such as jet engines or space vehicles.
Unmatched Chemical Resistance
Made of high-purity silica, quartz fiber sleeves exhibit robust resistance to corrosive agents, including:
- Strong acids
- Organic solvents
- Alkaline environments
This chemical durability makes them ideal for use in petrochemical facilities, chemical reactors, and semiconductor processing, where other materials degrade rapidly.
Exceptional Electrical Insulation
In addition to thermal benefits, quartz fiber sleeves possess excellent electrical insulation properties. With extremely low dielectric constants and minimal dielectric loss, they prevent electrical shorts and failures even in high-voltage and high-temperature environments. They are commonly used to protect wires in control panels, aerospace systems, and advanced research equipment.
Low Thermal Conductivity
Quartz fiber sleeves offer low thermal conductivity, enabling them to retain heat within critical components or shield surrounding structures from excessive heat exposure. This property enhances energy efficiency in industrial systems while reducing thermal stress on nearby parts.
Additional Advantages
- Lightweight structure ideal for mobile or airborne systems
- Flexibility for complex routing and installation in tight spaces
- Extended lifespan due to high wear resistance and structural integrity
Where Are Quartz Fiber Sleeves Used?
The multifunctional nature of quartz fiber sleeves has opened doors across numerous high-performance fields.
Aerospace and Spaceflight
Spacecraft and jet engines rely on quartz fiber sleeves to insulate vital components, including:
- Engine manifolds
- Wiring harnesses
- Hydraulic systems
During atmospheric reentry or supersonic flight, temperatures skyrocket. Only a sleeve with the robustness of quartz fiber can maintain stability, prevent failure, and ensure mission success.
High-Temperature Industrial Systems
In manufacturing plants, especially in metalworking or heat treatment industries, these sleeves serve as:
- Thermocouple insulation
- Furnace wiring protection
- High-temp sensor shielding
Quartz fiber’s chemical and thermal resistance ensures that production lines run reliably without costly shutdowns.
Automotive Sector
High-performance vehicles and turbocharged engines generate enormous heat. Quartz fiber sleeves are used in:
- Exhaust pipe shielding
- Turbocharger insulation
- Engine bay wiring protection
By insulating heat sources, they improve system reliability and reduce the risk of thermal damage to electronic components.
Other Applications
- Semiconductor fabrication
- Cryogenic systems
- Nuclear energy
- Scientific research laboratories
Their low outgassing and high purity make them ideal in sterile, ultra-high-tech environments.
Comparison: How Does Quartz Fiber Sleeve Stand Out?
Understanding how quartz fiber sleeves stack up against other insulation materials is crucial when selecting the right product for the job.
Table 1: Quartz Fiber vs. Fiberglass Sleeves
| Property | Quartz Fiber Sleeve | Fiberglass Sleeve |
|---|---|---|
| Max Continuous Temp (°C) | 1050°C | 550°C |
| Instant Temp Spike (°C) | 1700°C | 600°C |
| Chemical Resistance | High (acids, bases, solvents) | Moderate |
| Electrical Insulation | Excellent | Good |
| Flexibility | High | High |
| Cost | Higher | Lower |
| Typical Applications | Aerospace, military, high-tech | HVAC, home appliances, general use |
Table 2: Quartz Fiber vs. Ceramic & Silicone Insulation
| Property | Quartz Fiber | Ceramic Fiber | Silicone-Coated Fiberglass |
|---|---|---|---|
| Max Temperature | 1050°C / 1700°C peak | 1260°C - 1400°C | 260°C |
| Flexibility | High (braided/woven) | Low (rigid forms) | High |
| Electrical Insulation | Excellent | Poor | Moderate |
| Chemical Resistance | Excellent | Moderate | Good (with coating) |
| Durability | High | Brittle | Flexible but degrades |
| Primary Use | Cables, aerospace, labs | Furnace linings | Automotive, fluid contact |
Choosing the Right Quartz Fiber Sleeve
To make an informed choice, consider the following criteria:
Thermal Requirements
Ensure the selected sleeve can handle both continuous and peak operating temperatures. Higher purity fibers offer better thermal endurance.
Environmental Exposure
If the environment includes acids, solvents, or high humidity, opt for quartz fiber sleeves with proven chemical resistance and low moisture absorption.
Mechanical Considerations
Choose a braided design for maximum flexibility or a woven sleeve for rigidity and strength. For abrasion-prone setups, consider additional protective coatings if available.
Dimensional Needs
Accurately measure the diameter of the cable or component you intend to protect. Allow slight tolerance to avoid compression or bunching.
Regulatory Compliance
Ensure the product meets standards such as:
- RoHS (Restriction of Hazardous Substances)
- REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals)
- ISO or MIL-SPEC standards for military and aerospace use
Installing and Maintaining Quartz Fiber Sleeves
Installation Tips
- Use heavy-duty shears or rotary cutters for clean cuts.
- Seal sleeve ends with heat-resistant tape to prevent fraying.
- Install sleeves without excessive bending or twisting to maintain fiber integrity.
- Secure with stainless steel ties or high-temperature clamps.
Maintenance Guidelines
- Perform regular visual inspections.
- Replace any sleeves that show signs of damage or exposure.
- Clean with dry cloths; avoid water or harsh chemicals.
Leading Types of Quartz Fiber Sleeves
Different configurations of quartz fiber sleeves serve distinct purposes:
High-Temperature Sleeves
Standard high-silica sleeves for furnaces, jet engines, and thermal reactors.
Aerospace-Grade Braided Sleeves
Engineered with high-density weaves to handle vibration, pressure, and airflow turbulence in aircraft.
Chemical-Resistant Sleeves
Built for chemical plants, refineries, and lab environments where acid and alkali resistance is vital.
Woven Sleeves
More rigid and robust, used for heat shielding around flat panels or large machinery.
Ultra-Pure High-Silica Sleeves
For cleanrooms, microfabrication, and semiconductors where impurities can compromise product yield.
Why Quartz Fiber Sleeves Matter in Modern Engineering
Superior Material Science
The leap from traditional fiberglass to quartz fiber marks a shift toward advanced materials with optimized atomic structure, offering:
- Stability at molecular level under heat stress
- No devitrification (glass-to-crystal transformation) at high temps
- Low thermal expansion and high dimensional stability
Economic Implications
While initial costs are higher, long-term savings include:
- Less downtime from failures
- Longer service intervals
- Improved system safety and reliability
Final Thoughts: Is It Time to Switch to Quartz Fiber?
The engineering world has evolved past basic insulation needs. In environments where thermal failure could result in catastrophe, only materials like the quartz fiber sleeve can deliver on both safety and performance.
Its ability to endure extremes of heat, chemical exposure, and electrical stress makes it not just an option—but often a necessity—for professionals in aerospace, energy, automotive, and scientific industries.
A Quick Note on Compatibility
When integrating quartz fiber sleeves into your system, always verify compatibility with existing components. This includes checking for:
- Temperature rating alignment
- Size and flexibility requirements
- Chemical interaction with neighboring materials
Consulting with an industrial insulation specialist may also ensure you’re choosing the most effective configuration for your use case.
